without the prop hub
a) insert 4 screws 5MA x 90 mm lenght b) press gently on the prop shaft |
|

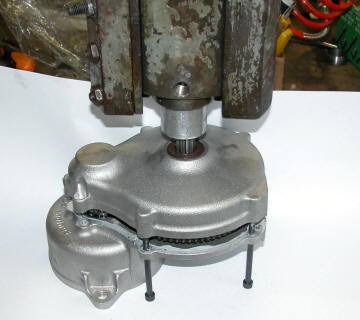

opening the reductor
|
without the prop hub
a) insert 4 screws 5MA x 90 mm lenght b) press gently on the prop shaft |
|
old before 2004 reductor (grease inside)
sostituzione del tubetto di sfiato
how to replace the air vent tube
inserire il nuovo tubetto in nylon |
con l'apposito utensile inserire l'anello di tenuta interno fix with the internal ring |

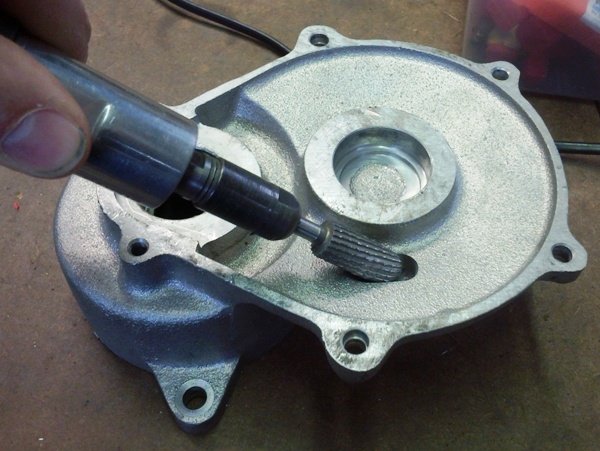

reduce the grease leaking problem from air vent :
|
remove as more as you can this
angle from the reductor case, (minimum thick 1mm) |
