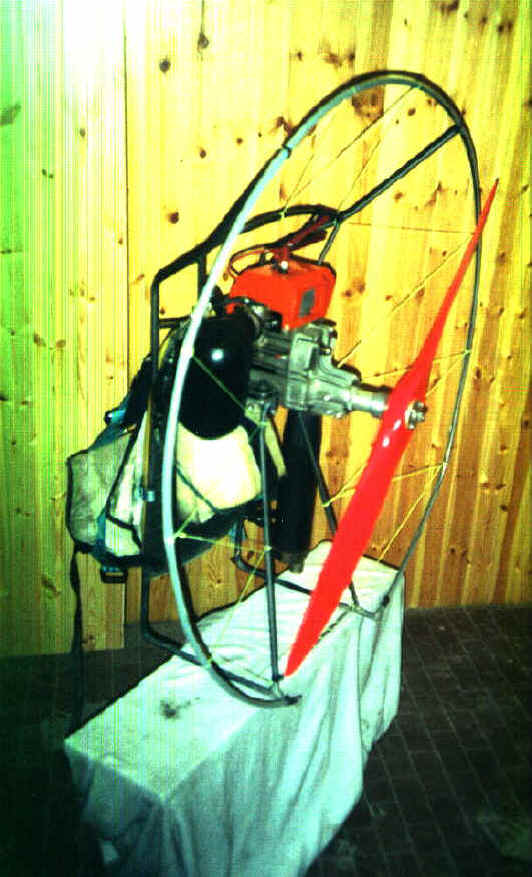

MINIPLANE | ||
motore engine |
cm3 | Comer 135 |
raffreddamento cooling |
ad aria forzata fan ducted air |
|
riduttore reductor box |
catena e frizione centrifuga in bagno d'olio chain and centrifugal clutch in oil bath |
|
elica propeller |
cm | 108 bipala 2 blades |
telaio frame |
acciaio steel |
|
carburatore | mm | tillotson 28 |
marmitta exaust system |
ad espansione resonance |
|
peso weight |
kg | 25 |
note | il peso è riferito al paramotore senza imbragatura, si usano imbragature
da volo libero. Per la prima volta viene applicata la frizione centrifuga : alla ricerca della sicurezza. la cilindrata diminuisce : alla ricerca della leggerezza. |
The weight is without harness, the same harness of
free flight is used The new solution with centrifugal clutch is born ! the first paramotor under 150 cc. In the same period paramotors are made with engine with two cylinder of 420 cc or three cylinder of 450 cc. |
limiti | le vele di questo periodo hanno una efficienza limitata, è necessaria
molta spinta che si ottiene solo con motori grossi e pesanti. Il telaio molto robusto, è comunque più semplice e leggiero rispetto al precedente, grazie alla presenza della frizione centrifuga |
this generation's paragliders had a very poor glide
rate, they need a lot of power, engines must be large and heavy. The frame is lighter and simplest than before, thanks to the friction on the propeller |
